1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use

Product Categories
Hebei Jianping Wire Mesh Manufacturing Co., Ltd
Contact Now

1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use

  • 1
  • 2

Brand Name : Jianping

Model Number : JP-2060F

Certification : CE , SGS

Place of Origin : Hebei

MOQ : 10 Sqm

Price : USD 5-30/m2

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 9000m2/week

Delivery Time : 5-8 Work Days

Packaging Details : Package film for each piece,Several pieces packed in 1 carton

Product Name : Helipad Helideck Safety Netting , X-tend Wire Rope Mesh

Material : Stainless Steel Wire, 304, 316, AISI 304/316/304L/316L

Wire Diameter : 1.2 Mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm

Size Of Hole : 25*25mm-300*300mm

Finished : Ultrasonic Bath , Black Oxide

Mesh Angle : 60 Degree

Mesh Shape : Rhombus , Diamond

Mesh Type : Ferruled Or Knotted

High Light : Stainless Steel Rope Mesh, Helipad Helideck Safety Netting

Application : Zoological Enclosures , Blustrade Infill , Helipad Helideck Safety Netting

Contact Now

Diamond Hole Stainless Steel Rope Mesh For Helideck Safety Net Cycle Use Protection Mesh

1.Product Description of Helipad Helideck Safety Netting

Helipad Helideck Safety Netting details:

Diamond Hole Stainless Steel Rope Mesh For Helideck Safety Net Cycle Use Protection Mesh
material stainless steel wire 304/316/316L
wire diameter 1mm-6mm
mesh hole size 20*20-300*300
structure 7*7 7*19
material of ferrules Tinned-copper,Nickel-plated copper, 316 stainless steel
Hole shape Diamond or custom
Color green or silver
Size special design as your size
Ship way By ocean or by air as your required

Helideck mesh is a stainless steel safety net system surrounded by structures of offshore helicopter landing
deck. It is choose stainless steel wire rope material make in suitable size and widely use in offshore.

Stainless steel safety nets is special

suitable for helideck protection application.It is choose good quality

stainless steel rope(Like SS304 316 316L) also can as your required.

It has different specification can choice and design.With the strong tensile strength and easy install widely

use in helideck or other safety net use areas.


2.Stainless steel Helipad Helideck Safety Netting specification list:

Stainless steel Helipad Helideck Safety Netting specification list:
Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 2×2 51×51 1600
3/32 2.4 3×3 76×76 920
3/32 2.4 2×2 51×51 920
5/64 2.0 2×2 51×51 676
5/64 2.0 1-1/2x 1-1/2 38×38 676
1/16 1.6 1-1/2x 1-1/2 38×38 480
1/16 1.6 1×1 25.4×25.4 480
3/64 1.2 1-1/2x 1-1/2 38×38 270
3/64 1.2 1×1 25.4×25.4 270

Helideck mesh for measuring purposes, the ferruled mesh is assumed to be stretched to create a 60°angle
at the top and bottom of the diamond.

  • OW = Opening Width
  • OH = Opening Height
  • d = Cable Diameter
  • θ = 60° Angle

1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use

Diamond Hole Stainless Steel Rope Mesh For Helideck Safety Net Cycle Use Protection Mesh

3.Helideck mesh application:

1. offshore

2. helideck

3. plant climb

4. guard fence

5. protection mesh for animal

1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use

Ss304 Staninless Steel Wire Rope Mesh for Helipad Helideck Safety Netting

1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use

Diamond Hole Stainless Steel Rope Mesh For Helideck Safety Net Cycle Use Protection Mesh

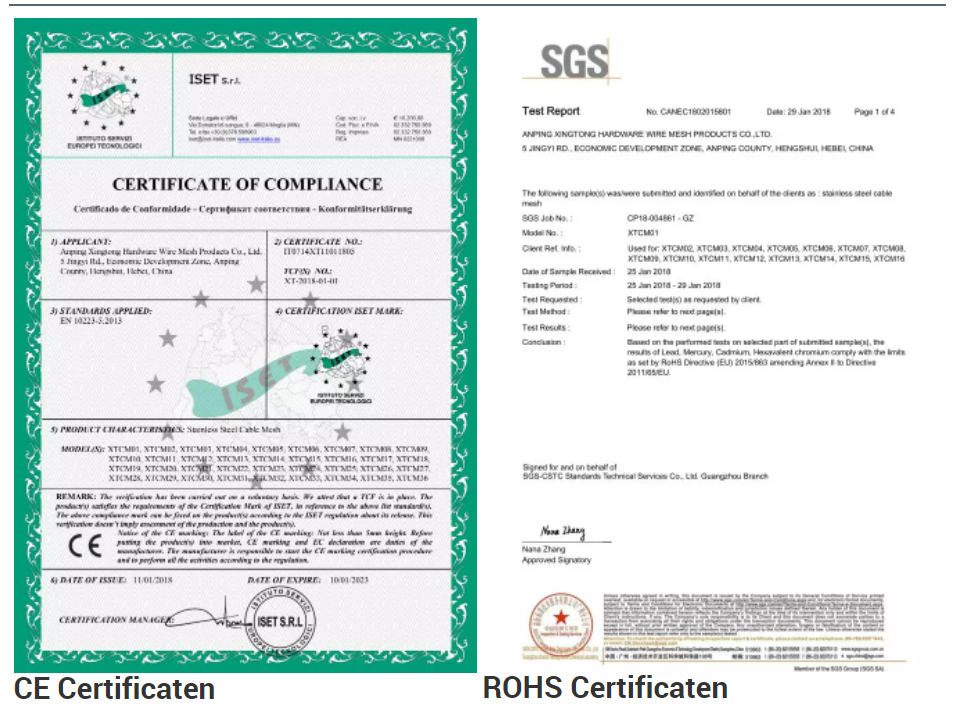

4.Certificeringen

1.2mm Diamond Shape Wire Mesh Ferruled , 2.0mm Anti Climb Fence Panels Cycle Use
